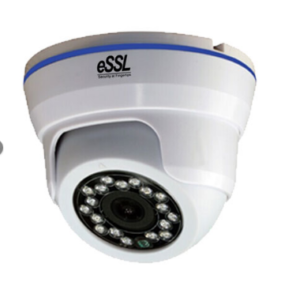

HD4-CVI-720P-IR
PRODUCT HIGHLIGTS
| Features | |
|---|---|
| Sensor | 1/3″,CMOS Sensor |
| Effective Pixels | 1280 x 720 |
| Electronic shutter speed | 4/25s – 1/45000s |
| Minimum illumination | color: 0.1 LUX , BW: 0.01LUX , IR ON: 0 LUX |
| CVI camera | ||
|---|---|---|
| Basic | Model No | HD B1 CVI 720P IR 3.6 |
| Type | Dome | |
| Sensor | 1/3″,CMOS Sensor | |
| Effective Pixels | 1280 x 720 | |
| Synchronization | Internal | |
| Electronic shutter speed | 4/25s – 1/45000s | |
| Minimum illumination | color: 0.1 LUX , BW: 0.01LUX , IR ON: 0 LUX | |
| Video Output | HD-CVI(1.0Vp-p,75Ω ) | |
| Frame Rate | 50HZ: 720P@25fps , 60HZ: 720P@30fps | |
| Features | Lens | 3.6mm |
| IR Range | 20m | |
| Day/Night | Auto | |
| White Balance | Auto | |
| Back light Compensation | Auto | |
| Power Supply | Power Supply | DC12V, 450mA |
| Power Consumption | <6W | |
| Temperature | – 10oC to +60oC | |
| Humidity | < 85%RH | |
| Ingress Protection | IP60 | |
| Weight | 170Kg | |
