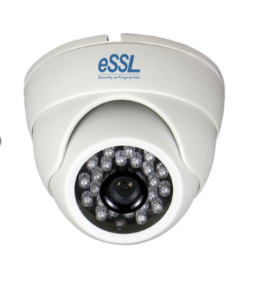

AHD-MT-APT-D1-3.6
PRODUCT HIGHLIGHTS
| Features | |
|---|---|
| Type | Dome |
| Sensor | 1/3″, CMOS sensor |
| Effective Pixels | 1280×720 |
| Sync | Internal Sync |
| Analog High definition camera : AHD-MT-APT-D1-3.6 | ||
|---|---|---|
| Basic | Model No | AHD-MT-APT-D1-3.6 |
| Type | Dome | |
| Sensor | 1/3″, CMOS sensor | |
| Effective Pixels | 1280×720 | |
| Sync | Internal Sync | |
| Electronic shutter speed | 1/50 – 1/10000 | |
| Minimum illumination | color: 0.5 LUX , BW: 0.01LUX , IR ON: 0 LUX | |
| S/N ratio | >50dB | |
| Video Output | 1.0Vp-p,75ohms | |
| Features | Lens | 3.6mm |
| Max Aperture | F1.2 | |
| IR range | 20m | |
| Day/Night | Auto(ICR)/color/BW | |
| OSD | No | |
| Supports AGC, AWB, BLC,3D Niose Reduction | yes | |
| Power Supply | Power Supply | DC12V, 2A |
| Power consumption | 2W | |
| Temperature | – 10oC to +40oC | |
| Humidity | < 90% | |
| Weight | 200g | |
