| Basic |
Model No |

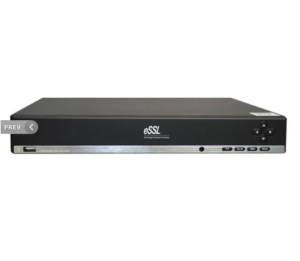

HD7704 |
|
Video Input |
4 x AHD cam |
| Recording |
Video Decoding |
H.264 High Profile |
|
Video Output : HDMI/VGA |
1024×768 ;1280×720; 1280×1024;1920×1080 |
|
Recording Resolution |
720P(AHD), 960H (Analog) |
|
Audio Decoding |
8Kx16 bit ADPCM |
|
Audio Input |
1 Ch RCA |
|
Audio Output |
1 CH RCA (linear 1KΩ) |
|
Bit Rate |
384 – 2560 Kbps |
|
Frame Rate |
1-25 fps |
|
Support Dual stream |
Main stream/Sub stream |
| Playback |
Synchronous Playback |
4CH AHD |
| HDD |
SATA Devices |
1 Internal , 1 external (For storage) |
|
Maximum HDD capacity |
4TB |
|
USB Interface |
2 x USB 2.0 |
|
Network Interface |
1 x RJ45 (10M/100M Ethernet ) |
|
Serial Interface |
1 x RS485 |
| Features |
Protocol |
TCP/IP,SMTP,HTTP,DHCP,PPPOE,NTP,DDNS,UPnP,FTP,RTSP,P2P, ONVIF |
|
Remote Mobile app |
Stream View (Iphone, Ipod, Android ) |
|
Remote Desktop app |
Smart client, CMS2000 |
|
Browser |
IE, chrome, Firefox |
|
Power Supply |
DC12V, 1.25A |
|
Power consumption |
<10W without HDD |
|
Temperature |
– 10oC to +55oC |
|
Humidity |
10% to 90% |
|
Dimension |
260(W)x41(H)x230(D) |
|
Weight |
2 Kg |
|
Recommended Cable |
CAT 5, CAT 6 series,Optical fiber |
