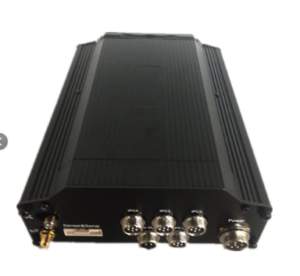

MDVR-40
PRODUCT HIGHLIGHTS
MDVR-41 is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, network, as well as GPS positioning technology.It supports not only video recording in 720P, WD1,HD1 and CIF formats, but also vehicle travel information recording and wireless data upload.It is powerful with modular design, flexible installation, easy maintenance and high reliability.
| Mobile Digital Video Recorder | ||
|---|---|---|
| System | OS | Linux 3.0.8 |
| Control Mode | Easy Check, network,mouse (3G/4G/WIFI) | |
| Video | Input | 4 channels HD + 1 IP channel 720P |
| Output | 1 channel | |
| Total Resource | (4×25)FPS WD1 @ PAL /(4×30)FPS HD @ NTSC +30FPS 720P | |
| Video Signal Standard : | Electrical level: 1Vpp Impedance : 75Ω NTSC/PAL Optional | |
| Recording | Video/Audio Compression | Video: H.264 , Audio: ADPCM |
| Image Resolution Analog | PAL: WD1(928X576), WHD1(928X288), WCIF(464X288), | |
| D1(704X576), HD1(704×288), CIF(352×288) | ||
| Digital: 720P(1280X720) | ||
| Image Quality | 1-8 levels adjustable (1 is the best) | |
| Recording Mode | Boot up/Manual/Schedule/Alarm | |
| Pre-recording | 0-60 minutes | |
| Post-recording | 0-30 minutes | |
| Playback | Playback Channel | 1 channel by local playback |
| Search Mode | Date/time, channel, event | |
| Network | WIFI/3G/4G(Optional) | 802.11b/g/n/EVDO/WCDMA/TDD-LTE/FDD-LTE |
| IPC Ethernet | 6-pin DJ(100M x 1, PON power supply) | |
| Locating | GPS | Location tracking, speed detection & time sync |
| Storage | Hard Disk | 2.5″ SATA hard disk x 1 |
| Interface | USB | USB2.0 x 1 | RS232 : RS232 × 1 |
| Sensor | 8 inputs, 2 outputs | |
| Speed | 1 channel pulse speed detection | |
| Intercommunication | I mic interface | |
| Power | Input : DC8-36V, Ignition signal | |
| Output | 5V@1A | |
| Max Power Consumption | 32W | |
| Standby Power Consumption | ≈0W | |
| Physical Characteristic | Dimension (L × W × H) | 206.0mm x 190.0mm x 70.4mm |
| Weight | 1.24Kg | |
| Environment | Operating Temperature | -40oC- +70oC(With heater) or -10oC- +70oC |
| Operating Relative Humidity | 8%-90% (No Condense) | |
| Features | ||
| – | Supports 4 channels HD+1IP channel 720P | |
| – | Supports Hard disk for main recording | |
| – | Supports GPS for location tracking (optional) | |
| – | Supports WIFI for video files download (Optional) | |
| – | Built-in 3G/4G for live view and remote management (Optional) | |
| – | Vibration-resistant design to meet various environment needs | |
| – | Supports USB2.0 high speed backup | |
| – | Supports data recovery technology | |
