Description

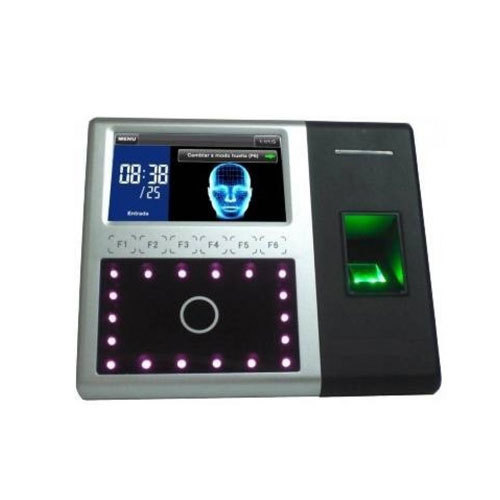

Multi biometric t & A and Access Control System.
Face capacity: 1200 (3000 optional) 1:N
FingerPrints templates: 2000
Card storage : 10,000 (optional)
Transaction storage : 1,00,000
Card Reader : Yes
CPU : 1GHZ
Fingerprint Sensor : 500 DPI optical sensor.
FAR : <=0.0001%
FRR : <=1%
Identification Speed : Algorithm Ver :10

Identification Speed : Algorithm Ver :10
Display : 4.3 inch Touch Screen
Keypad : 4*4 with 5 functional keys
LED Indicator : Green/Red
Schedule Bell/Speaker : Mini Speaker
Communication : TCP/IP, USB Host/RS232/485
Push Data : Yes
Power Supply : 12v 3A
Operating Temperature : 0 deg. To 45 degree C.
Operating Humidity : 20%-80%
Dimensions : 194.1*169*109.0mm
Wiegand : Output
Relay :12v relay for lock EM lock ,Bolt Lock or Strike Lock
Support Fire Alarm : Yes
Door Sensor : Yes
Anti Passback : Yes
Door Bell : Yes
Support Exit Readers : No
Battery :  (Optional) 7.4v, 2000mAh Backup Battery

Compatible:
-Compatible with Multi Door controllers via weigand
-External Speaker Output available (Optional).
-External Bulb output available (optional).
-Support External Printer.
Compatible Software and SDK
-Smart office suite desktop and web.
-eTime track lite desktop and web.
-SDK for desktop applications.
-Web based Device manager/ePush server using Push Data Helps developers &amp; Integrators.
-Support #rd party payroll/HRMS/ERP and other applications.
