UHF 1-5 / 2-5

PRODUCT HIGHLIGHTS

	Features
—	Read range up to 5 meters (adjustable)
—	Read Sensitivity: Line polarization  read mode
—	Wiegand 34-Bit (Can change to 26-Bit  via software)
—	Comes with the mounting plate
—	Weatherproof (IP66)
—	Two working mode: Trigger read &  Always read
—	Maximum Cable Distance: 100m
—	Multiple label recognition

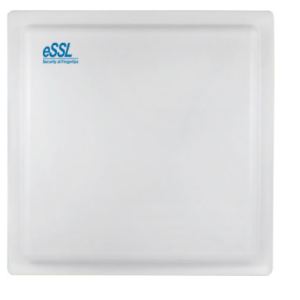

UHF 1-5 / 2-5 : UHF RFID Reader
Dimension	260 x 260 x 65(mm)
Reading Distance	Up to 6 meters (adjustable)
Communication Interface	Wiegand 34(Default) / Wiegand 26, USB
Frequency	902Mhz–928Mhz, 865MHz–868MHz
Shell Material	Die-casting aluminum shell, Antenna panel with engineering plastics
Voltage	9~12V DC
Temperature	-20°C to 60°C
Interface Protocol	EPC global UHF Class 1Gen 2/ISO 18000-6c
Multiple Tags Identification	>50
Multiple Tags Identification Speed	>50 Per second
Working Mode	Always read/Trigger read
I/O	Interface Supports external trigger
Maximum power consumption	<3W (RF output 26dBm,multiple tags)
	<2W (RF output 26dBm,Sigle tags)
